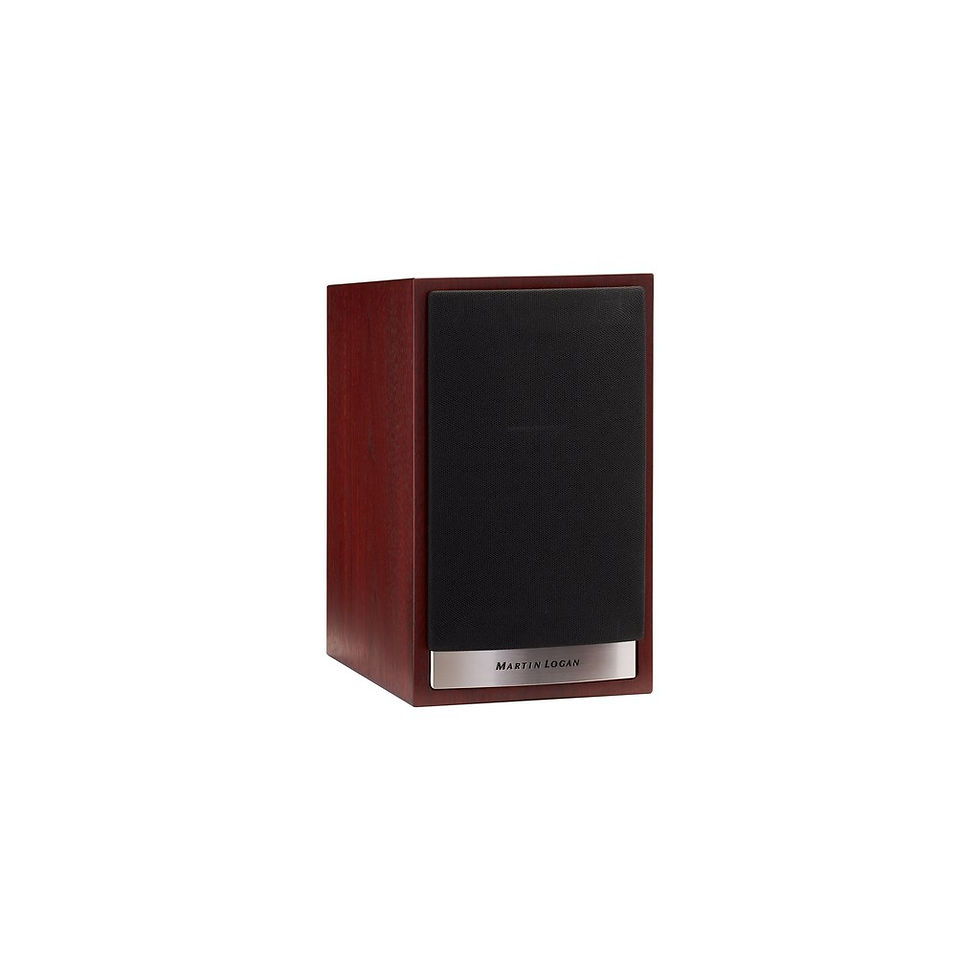

MARTIN LOGAN Motion 15i
Frequency Response
60–25,000 Hz ±3dB
Recommended Amplifier Power
20—200 watts per channel
Horizontal Dispersion
80°
Vertical Dispersion
80°
Sensitivity
92 dB/2.83 volts/meter
Impedance
5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency
2,700 Hz
High Frequency Transducer
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
Low Frequency Transducer
5.25” (13.3cm) aluminum cone with cast basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.
Components
Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.
Inputs
Custom 5-way tool-less binding posts
Weight
12 lbs. (5.4 kg)
Dimensions
11.4" x 6.8" x 9.5 "
(29cm x 17.3cm x 24cm)
